CubePilot Ecosystem Autopilot Wiring Diagram (Multilingual)
CubePilot Ecosystem Autopilot Wiring Diagram - English
CubePilot Ecosystem Autopilot Wiring Diagram - English
CubePilot 시스템 다이어그램 - Korean
CubePilot 시스템 다이어그램 - Korean

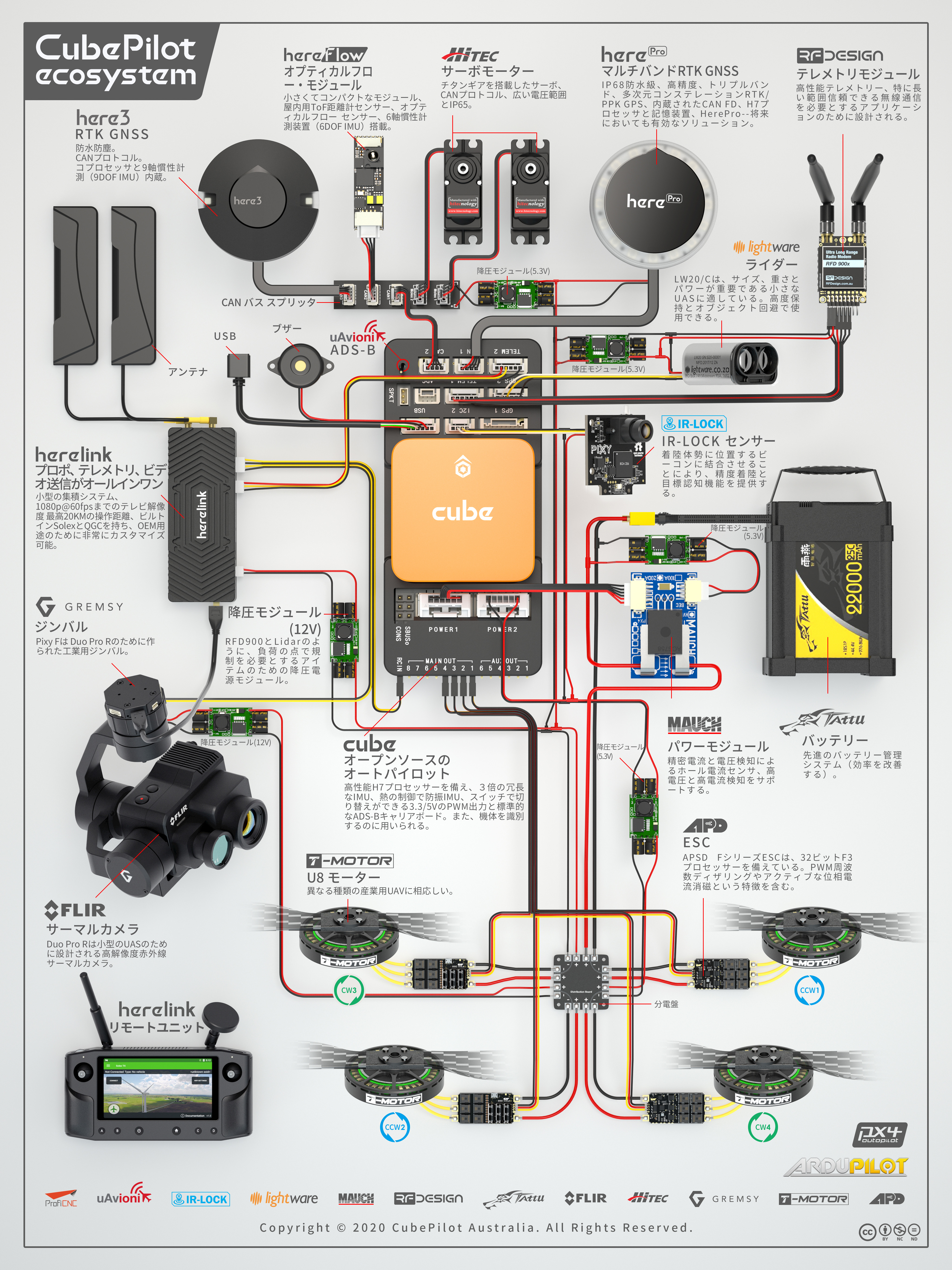

CubePilot生態系自動操縦配線図 - Japanese
CubePilot生態系自動操縦配線図 - Japanese

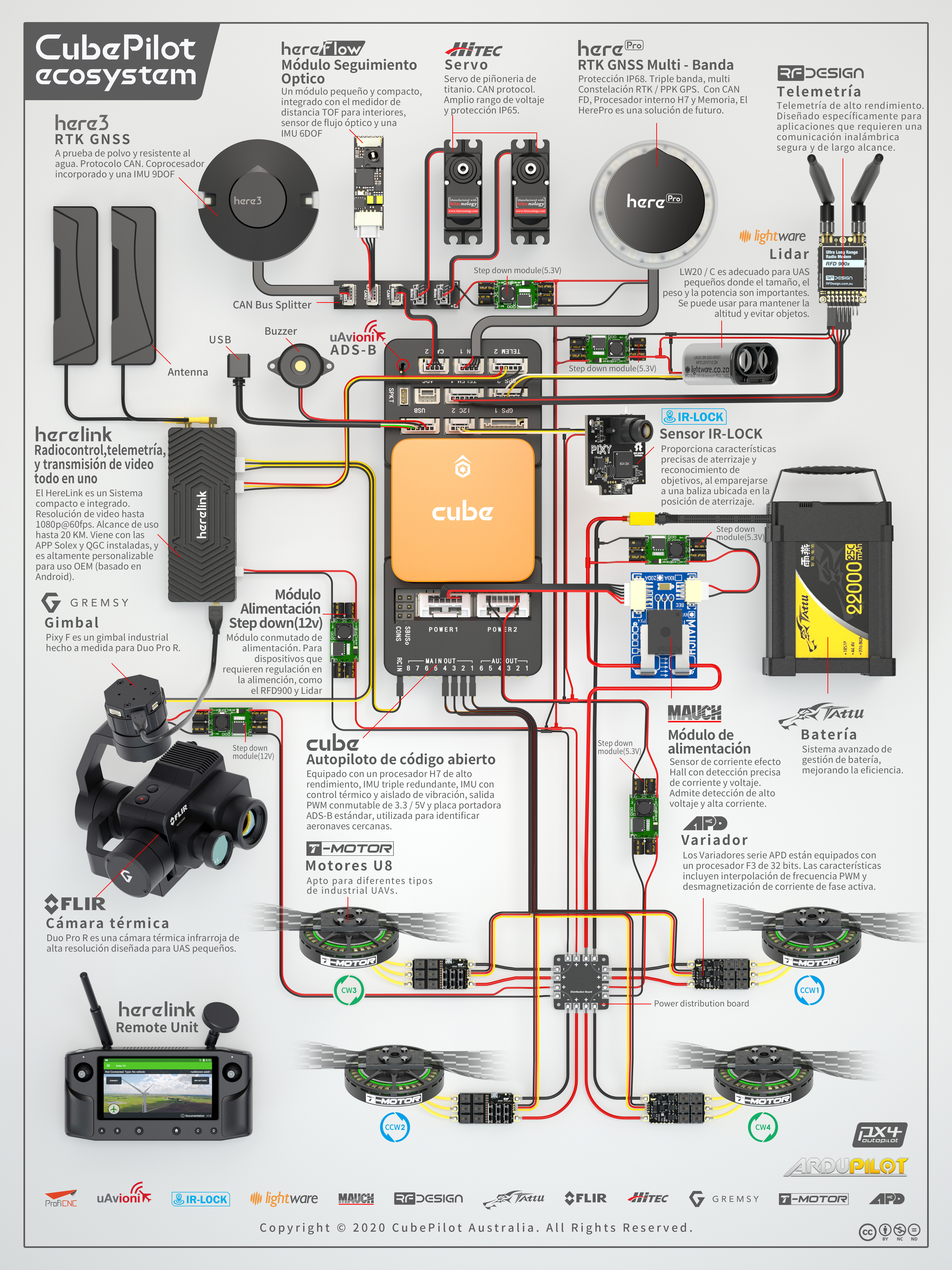

Diagrama de cableado del piloto automático del ecosistema CubePilot - Spanish
Diagrama de cableado del piloto automático del ecosistema CubePilot - Spanish
Oekosystem-Autopilot-Schaltplan - Germany
Oekosystem-Autopilot-Schaltplan - Germany
Schéma de câblage d’un pilote automatique dans l’écosystème CubePilot - French
Schéma de câblage d’un pilote automatique dans l’écosystème CubePilot - French

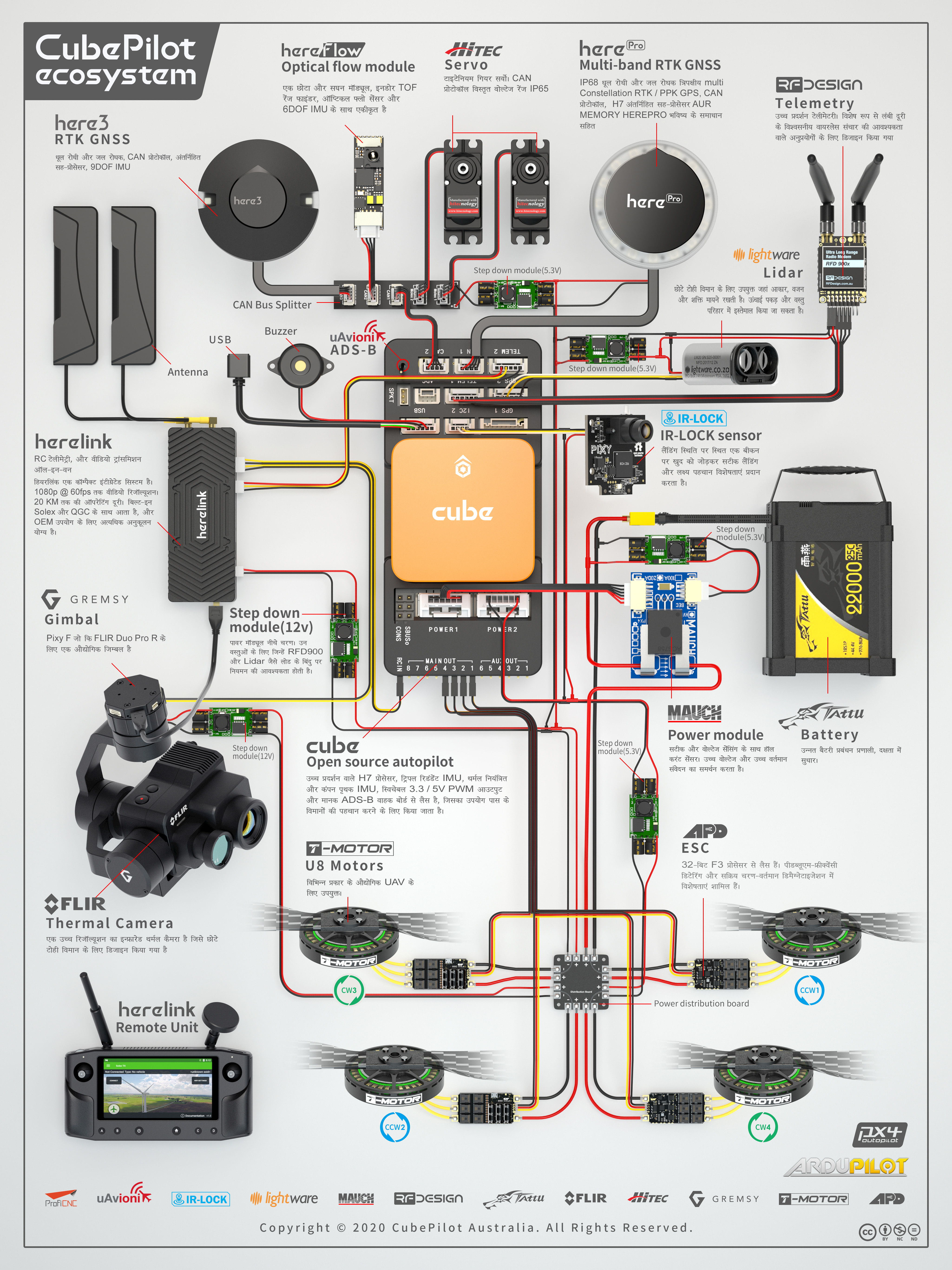

CubePilot Ecosystem ऑटोपायलट वायरिंग आरेख-Hindi
CubePilot Ecosystem ऑटोपायलट वायरिंग आरेख-Hindi
Схема подключения автопилота в экосистеме CubePilot-Russian
Схема подключения автопилота в экосистеме CubePilot-Russian

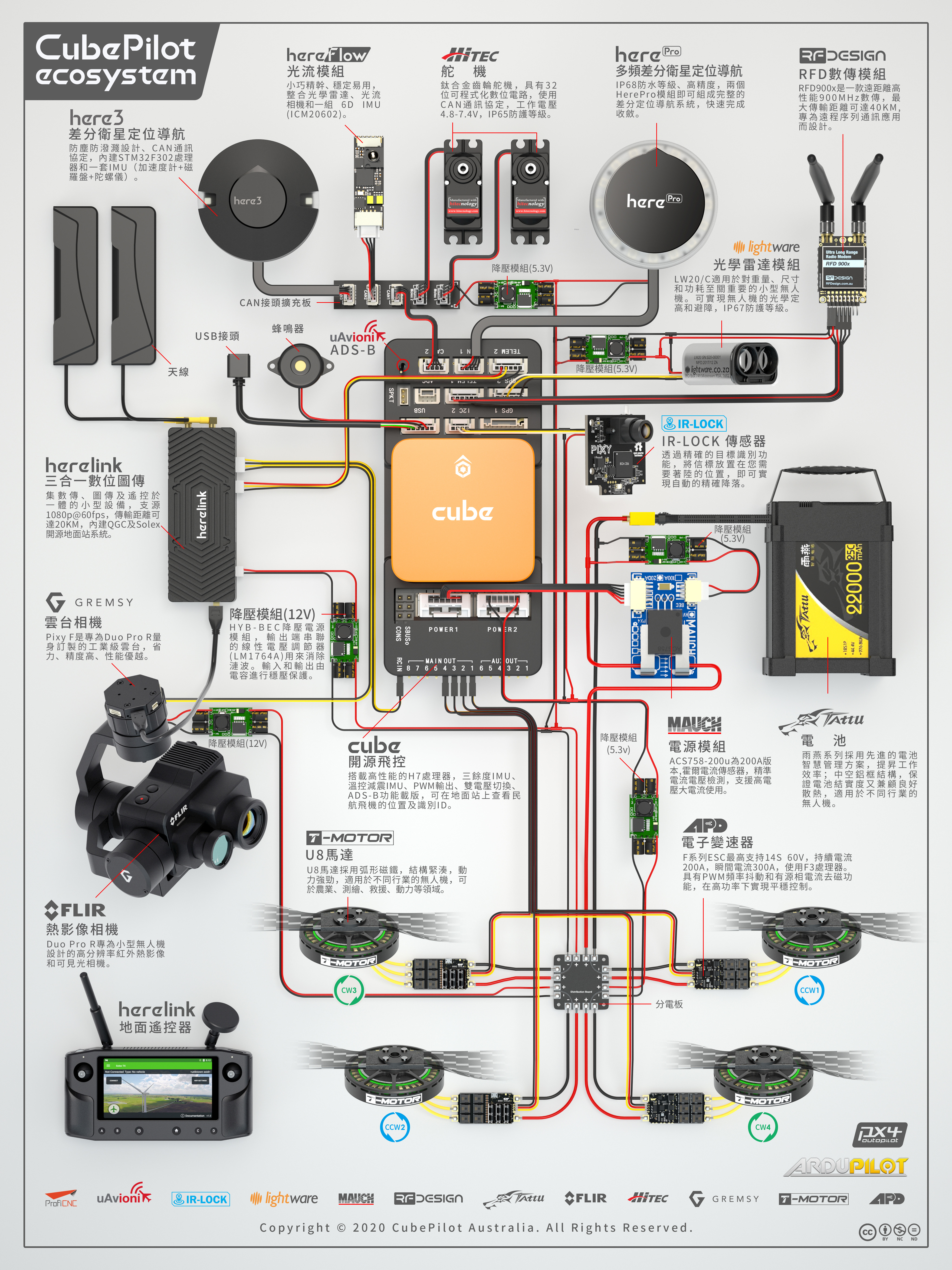

CubePilot生態系無人機飛控系統配線圖-繁體字
CubePilot生態系無人機飛控系統配線圖-繁體字
Cubepilot-ekosystem cubepilot-Polski
Cubepilot-ekosystem cubepilot-Polski
CubePilot-CubePilot Ecosystem Autopilot Wiring Diagram-Turkish
CubePilot-CubePilot Ecosystem Autopilot Wiring Diagram-Turkish
