# EDU-450

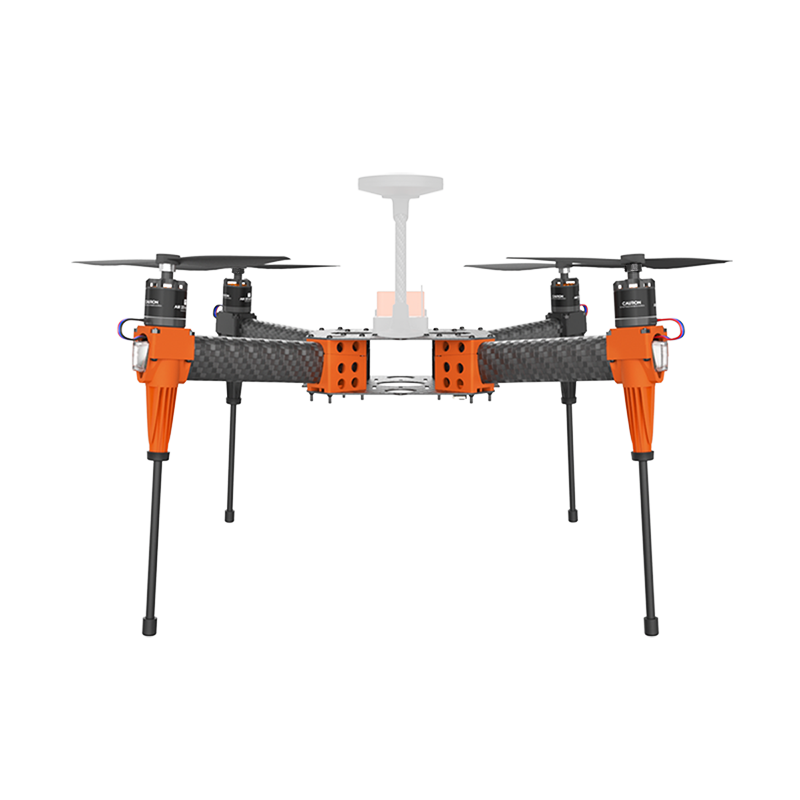

![](https://3175993181-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LUhw7cdLeWVORgnTA3i%2Fuploads%2FGIwNVkxVrZszxYs6FyX4%2F450.png?alt=media\&token=0f75863e-cad0-483f-9ce2-755532312a0d)

## Specification

**Wheelbase:** 450mm \
**Size:** 360\*360\*260mm \
**Motor:** HS2216 KV:920\
**ESC:** CubePilot 20A\
**Propeller:** T-MOTOR T1045Ⅱ\
**Weight:** 870g (without battery) \
**Max Payload:** 960g (without battery) \
**Recommend Battery :** 4S 5300mah

{% file src="/files/-MOFNLKh0\_mN8B8rSX-X" %}
EDU-450 PID parameter reference (Zipped)
{% endfile %}

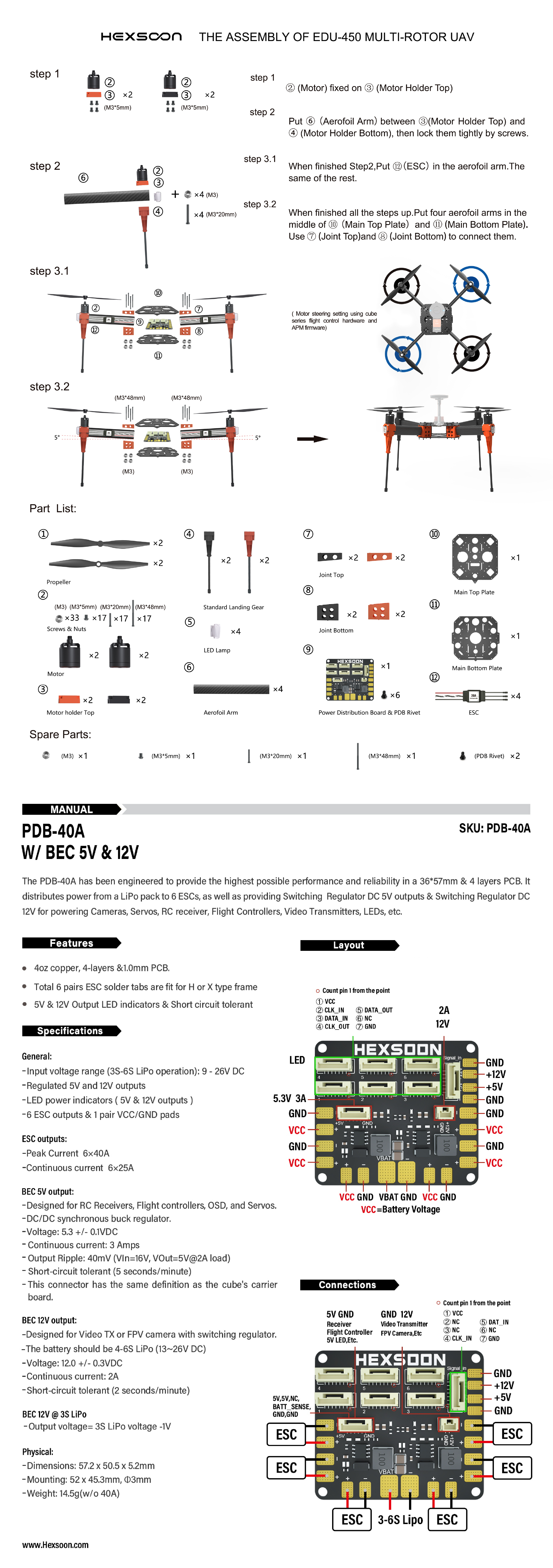

<figure><img src="https://3175993181-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LUhw7cdLeWVORgnTA3i%2Fuploads%2F53rKimKcBGWEheLd8cSb%2FEDU-450_new.png?alt=media&amp;token=ee72fbe1-5abc-4edd-9fa0-c260ce719396" alt=""><figcaption></figcaption></figure>
